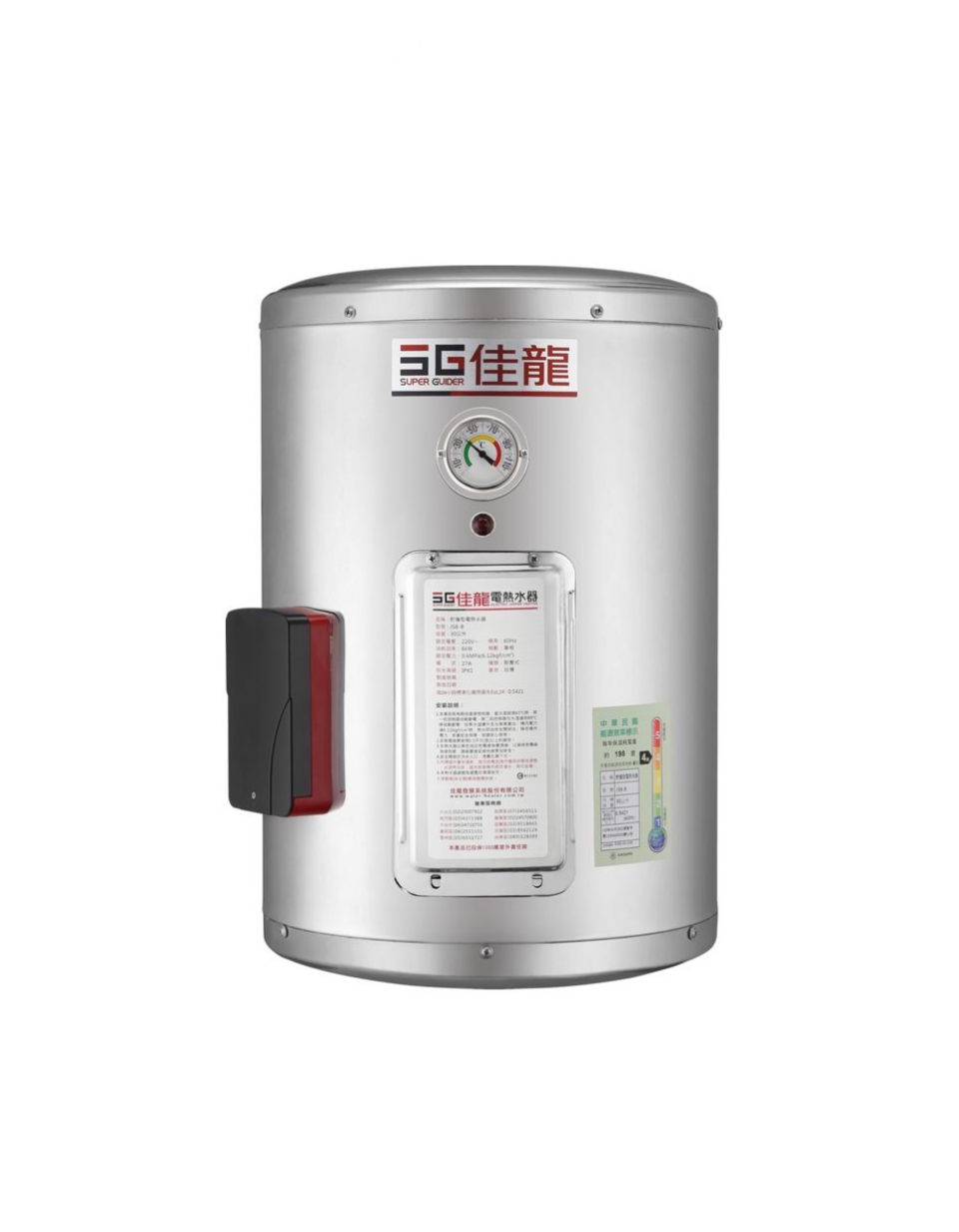

Vertical-Wall Series
Introduction
Storage electric water heater comes in wide range of capacity to suit all sizes of family or group. Stainless steel tank can withstand pressure up to 12kg, which is also designed with insulation.
Temperature-pressure relief valve and check valve have designed into one for easier installation.
All models including Super Guider leakage circuit breaker and installed in transparent cover.
Wall-mounted series can be ordered vertically or horizontally according to environment.
Stainless steel tank is firm enough to withstand water pressure of up to 12kg.
The thick PU foam insulation helps to retain hot water for longer time.
Clear power/indicating light illuminates when heating commence.
Special order is available for specific environment conditions.
Easy heating element replacement and maintenance design.
Fashion mirror surface polishing.
Trendy easy-to-read compass.
Temperature-pressure relief valve and check valve have designed into one for easier installation. All models including Super Guider leakage circuit breaker and installed in transparent cover. Wall-mounted series can be ordered vertically or horizontally according to environment. Stainless steel tank is firm enough to withstand water pressure of up to 12kg. The thick PU foam insulation helps to retain hot water for longer time. Clear power/indicating light illuminates when heating commence. Special order is available for specific environment conditions. Easy heating element replacement and maintenance design. Fashion mirror surface polishing. Trendy easy-to-read compass.
-
Vertical-Wall Series
MODEL Capacity Voltage Current Power Phase Inlet & Outlet
ConnectionTime to increase
by 25°CDimensions JS8-B 8 gallons 220V 27A 6 kW Single 1/2" 10 mins Ø 39x60 cm JS12-B 12 gallons 220V 18A 4 kW Single 1/2" 20 mins Ø 39x79 cm JS15-AE 15 gallons 220V 18A 4 kW Single 1/2" 25 mins Ø 43x77 cm JS20-AE 20 gallons 220V 18A 4 kW Single 1/2" 33 mins Ø 43x95 cm -
-
Installation
- Install as close to faucet as possible to prevent heat lost in pipe.
- Ensuring the tripod or wall-mounted hook is tight when installing.
Water Connection- Connect safety valve to cold water inlet. Connect pressure releasing pipeon pressure releasing hole of the safety valve can avoid danger cause by pressure releasing.
- Note that the pressure releasing hole should never be blocked.
- Keep the cold water inlet faucet open, it is normal if safety valve drips during heating.
- Inlet water pressure is recommended to remain under 1kgf / cm². However, highly recommended to install pressure decreasing valve when pressure exceed 2kgf / cm².
- Inlet and outlet connection gauge should be the same according to the product specification.
- Install safety valve is necessary ensuring the safety.
Power Connection- Power cord is either black or red. Make sure to connect the green earth cord correctly.
- Note that the blue dot inlet pipe indicates cold water inlet pipe whereas red dot indicates hot water outlet, make sure installation is correct.
-
Reminder
- All electrical installation should be carried out by a qualified person. Make sure the operation of Power and water supply before contact the distributor.
- Electrical Regulation Replacement
- Please switch off the power and take off the terminal of the electrical regulation and all wires before replacing the electrical regulation. Ensuring the screw and nut are tighten after replacement and wires arrangement.
- Heating element function
- Water (faucet) should be leaked off (switch-off) before replacement of heating element function. Once installation completes, turn on both hot water faucet and cold water faucet then open the clean access.
- Heating element function is able to be taken apart by wrench. Ensuring the rubber washer is well fixed preventing the water heater from leaking before re-arranging the heating element function.
- Scheduled Maintenance
- Heating system should be cleaned once two year ensuring the heating quality which is highly recommend.
- Scheduled cleaning the exterior of water heater to keep intact.
- 1 year warranty for the product.
- Overheat Preventive Device will automatically interrupt by abnormal overheating.
- Attention: Turn off the power immediately while power indicator not illuminating and contact customer service.
-
